Reinforced concrete girder bridge crossing the Thibar river in the governorate of Jendouba
The structure crosses the Thibar river, located on the axis of the regional road RR75 which connects Thibar and Teboursouk.

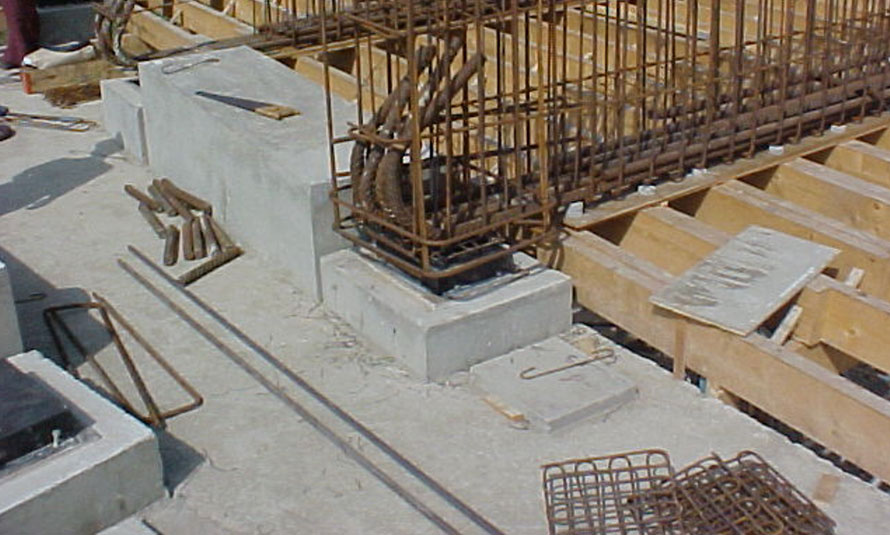

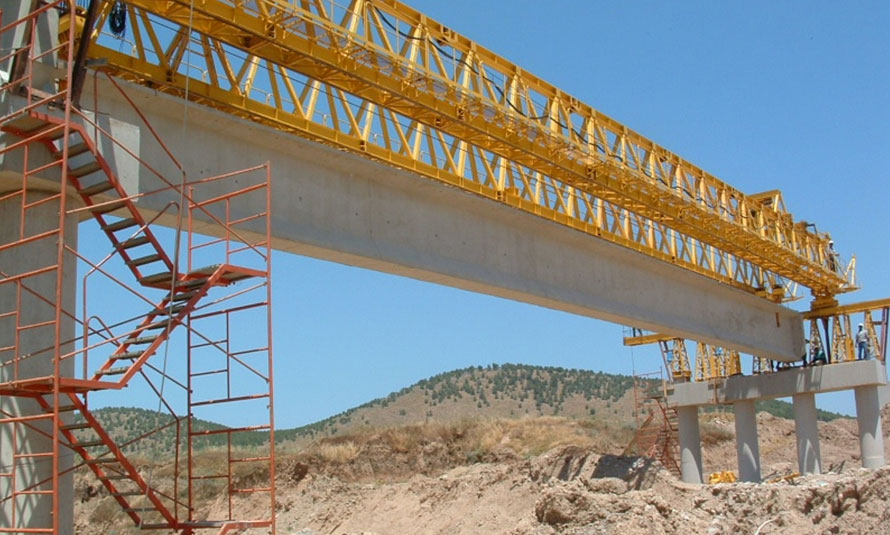

The structure is a reinforced concrete girder bridge with two independent spans with a span of 15.90 m each. Each span is made up of 11 prefabricated rectangular section beams connected by an 18 cm thick slab cast on site using a permanent formwork (B.A slabs 5 cm thick).
The 10.72m wide apron supports two-way traffic; It has two (2) end joints of the roadway.
The total length of the structure is 34.10 m.
Services performed
Execution design
